Description
Brass angle valve manufactured from high-quality brass alloy, offering good corrosion resistance and durability for general plumbing and control applications.
Angle pattern design allows for a 90° change in flow direction, ideal for space-constrained installations.
Rated PN10 for pressures up to 10 bar, suitable for low to medium-pressure systems.
Threaded ends provide secure, leak-tight connections for easy and reliable installation.
Features
FEATURES / CHARACTERSTICS
Rating: PN10
Connection: BS EN 10226-2
BSPT Threaded(EX. BS21)
Working Medium: Water
Brass Angle Type Body, Chrome Plated with
Wall Flange, Quarter Turn Handle,
Both side Male Threads, Hot & Cold Indicator
WORKING TEMPERATURE :
10 Bar -10° C to 100° C water
HYDROSTATIC TEST PRESSURE:
Shell- 15 bar
Seat- 11 bar
ON REQUEST :
NPT Threads,Male/Female Ends(subject to minimum order quantities)

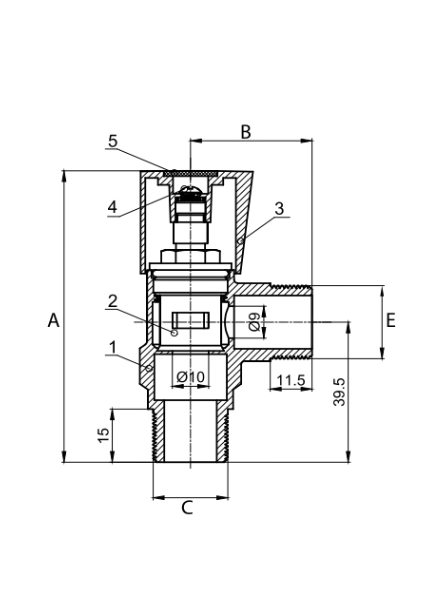

Specification
| Parts | Material |
|---|---|
|
Dust Cover |
Plastic |
|
Pin M4 |
Brass
|
|
Handwheel |
CW614N
|
|
Stem |
CW614N
|
|
O Ring |
NBR |
|
Ceramic Core |
Ceramic |
|
Valve Core |
CW614N |
|
Body |
CW614Nl
|
