Description

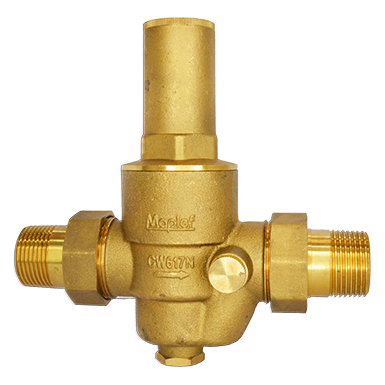

Direct acting pressure reducing valve constructed from corrosion-resistant brass, ideal for reliable pressure regulation in domestic and light industrial water systems. Designed to maintain consistent downstream pressure by directly responding to pressure changes without external pilot components. Rated PN16 for operation up to 16 bar, suitable for medium-pressure applications. Equipped with union connections for easy installation, removal, and maintenance within pipeline systems.
Features
FEATURES / CHARACTERSTICS
Rating: PN16
Connections: BS EN 10226-2
Taper Threaded (EX BS21)
Working Medium: Water,Gas
Outlet pressure: 1~4 bar (DN15-DN25) 1~5 bar (DN32-DN100)
Direct Acting Type, Union Male Threaded Ends,
Provision for pressure gauge
WORKING TEMPERATURE :
16 Bar 0° C to 70° C water
HYDROSTATIC TEST PRESSURE :
Shell- 24 bar
Seat- 17.6 bar
ON REQUEST :
NPT Threads (subject to minimum order quantities)

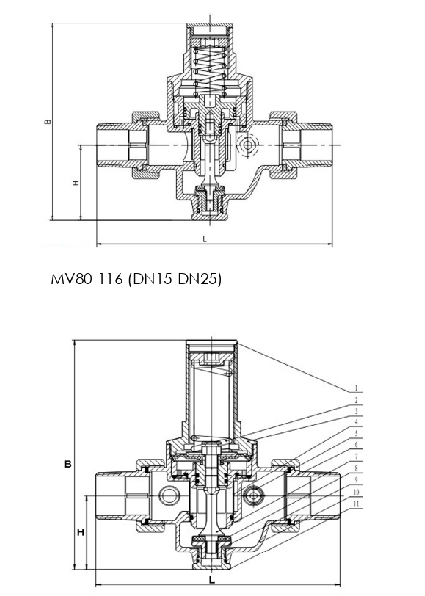

Specification
| Parts | Material |
|---|---|
|
Tap Lid |
Brass CW617N |
|
Spring |
Alloy Steel |
|
Bonnet |
Brass CW617N |
|
Mesh |
SS 304 |
|
Plug |
Brass CW617N |
|
Male Nipple |
Brass CW617N |
|
Stem |
Brass CW617N |
|
Gasket |
NBR |
|
Disc |
Brass CW617N |
|
Body |
Brass CW617N |
|
Cap |
Brass CW617N |
