Description
Brass swing check valve made from high-quality brass alloy, offering good corrosion resistance and durability in general-purpose applications.
Horizontal swing design provides efficient flow with reliable prevention of backflow.
Rated PN16 for pressures up to 16 bar, suitable for residential, commercial, and light industrial systems.
Threaded ends ensure secure, easy installation and leak-tight connections.
WRAS Approved
Features
FEATURES / CHARACTERSTICS
Rating: PN16
Connections: BS EN 10226-1
BSPP Threaded(EX BS21)
Working Medium Water, Oil, Steam
Horizontal Swing Pattern, Threaded Cover
Suitable for mounting in Horizontal and Vertical pipe
(with vertical flow upwards)
WORKING TEMPERATURE :
16 Bar -10° C to 110° C water
HYDROSTATIC TEST PRESSURE:
Shell- 24 bar
Seat- 17.6 bar
ON REQUEST :
NPT Threads(subject to minimum order quantities)

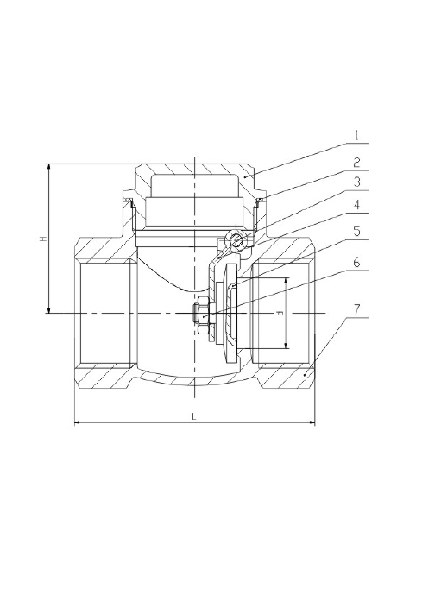

Specification
| Parts | Material |
|---|---|
|
Cap |
Brass CW617N |
|
Packing |
PTFE |
|
Hinge Pin |
Brass CW617N |
|
Hinge |
H62 |
|
Disc |
Brass CW617N |
|
Hinge Nut |
H62 |
|
Body |
Brass CW617N |
