Description

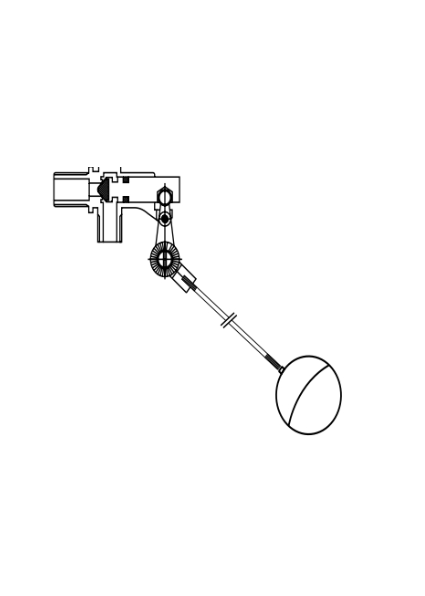

Equilibrium float valve constructed from high-quality bronze (copper-tin alloy), offering excellent corrosion resistance and durability in water storage systems.
Equilibrium design balances pressure across the valve, enabling smooth and quiet operation under varying flow conditions.
Equipped with a durable plastic float ball for accurate water level control.
Rated PN10 for pressures up to 10 bar, ideal for tanks, reservoirs, and cisterns.
Threaded ends ensure secure, leak-tight connections and straightforward installation.
Features
FEATURES / CHARACTERSTICS
Rating: PN10
Connection: BS EN 10226-1
BSPP Threaded(EX BS21)
Working Medium: Water
Bronze Body, Brass Connecting Rod, PP Float
Ball, Piston Type
WORKING TEMPERATURE :
10 Bar -10° C to 100° C water
16 Bar -10° C to 100° C water
HYDROSTATIC TEST PRESSURE:
Shell- 24 bar -PN10
Shell- 24 bar -PN16
ON REQUEST :
NPT Threads (subject to minimum order quantities)
Specification
| Parts | Material |
|---|---|
|
Ball |
Bronze
|
|
Nut |
Bronze
|
|
O-Ring |
EPDM |
|
Stem Rod |
Brass
|
|
Hinge Pin |
Brass
|
|
Hinge |
Brass |
|
Float Ball |
PP |
