Description
Robust bib cock made from high-quality bronze, providing excellent corrosion resistance and durability for demanding water supply applications. Lockshield feature restricts unauthorized operation, enhancing security and control. Equipped with a hose union for quick and secure hose attachment, ideal for outdoor and industrial use. Rated PN16 for pressures up to 16 bar, suitable for medium-pressure systems. Threaded ends ensure reliable, leak-tight connections and straightforward installation.
Features
FEATURES / CHARACTERSTICS
Rating: PN16
Connections: Threaded Ends BSPT
Working Medium: Water
Bronze Body, Brass Bonnet and Disc, Lockshield
with Key, Hose Connection,
vacuum breaker(on request)
WORKING TEMPERATURE :
16 Bar -10° C to 100° C water
HYDROSTATIC TEST PRESSURE:
Shell- 24 bar
Shell- 17.6 bar
ON REQUEST :
NPT Threads (subject to minimum order quantities)
Specification

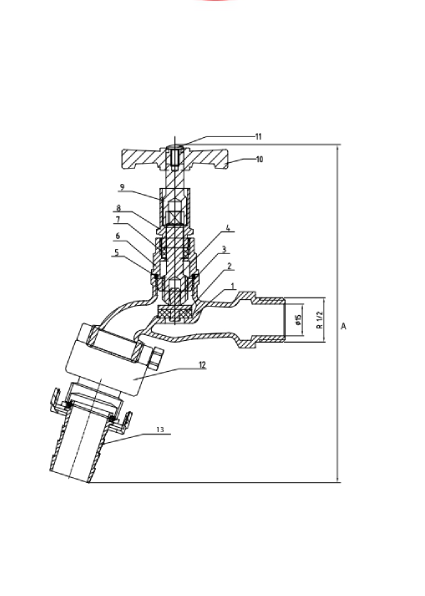

| Parts | Material |
|---|---|
|
Body |
Bronze
|
|
Washer |
EPDM
|
|
Disc |
Brass |
|
Stem |
Brass
|
|
O-ring |
EPDM
|
|
Bonnet |
Brass |
|
Packing |
PTFE
|
|
Packing nut |
Brass |
|
Key |
Brass |
|
T handle |
Brass |
|
Lag spike |
Brass
|
|
Vacuum breaker |
DZR |
|
Hose union |
Brass |
