Description
Durable bronze body with inside screw and lock-shield non-rising stem for tamper-resistant operation.
PN16 rated — handles pressures up to 20 bar with excellent corrosion resistance.
Engineered for reliable, low-maintenance performance in long-term
Features
FEATURES / CHARACTERSTICS
Design: BS EN 12288/B
(EX BS 5154)
Rating: PN20
Connections: BS EN 10226-1
BSPP Threaded (EX BS21)
Working Medium: Water, Oil and Steam
Threaded Bonnet, Lock-Shield Stem
Single Piece Wedge
WORKING TEMPERATURE :
20 Bar -10° C to 110° C water
WRAS approved -10° C to 85° C
HYDROSTATIC TEST PRESSURE :
Shell- 30 bar
Seat- 22 bar
ON REQUEST :
NPT Threads, (subject to minimum order quantities)
Note: Key will sale separately

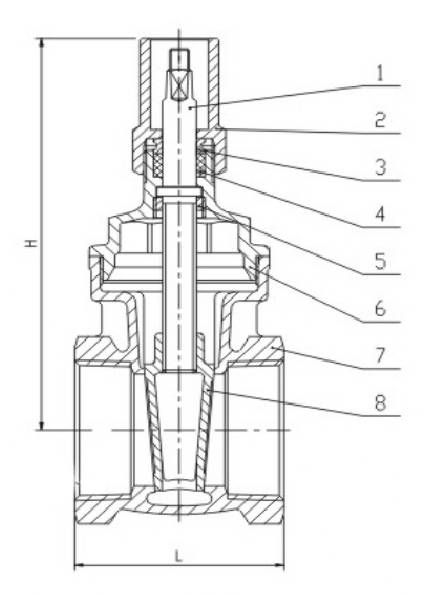

Specification
| Parts | Material |
|---|---|
|
Stem |
DZR Brass CW602N |
|
Lockshield |
Brass CW614N |
|
Clamping |
Brass CW617N |
|
Packing |
PTFE |
|
Stem Bush |
DZR Brass CW602N |
|
Bonnet |
Bronze CC491K |
|
Body |
Bronze CC491K |
|
Disc |
Bronze CC491K |
