Description
Direct acting pressure reducing valve made from corrosion-resistant bronze, designed for reliable and precise pressure control in potable water and industrial systems.
Operates by directly responding to downstream pressure fluctuations, eliminating the need for external pilot mechanisms.
Rated PN20 for pressures up to 20 bar, making it suitable for higher-pressure applications.
Threaded ends provide secure and versatile connections, allowing easy integration and maintenance in pipeline networks.
WRAS Approved
Features
FEATURES / CHARACTERSTICS
Rating: PN20
Connections: BS EN 10226-2, Taper Threaded (EX BS21)
Working Medium: Water, Oil and Steam
Outlet pressure: 1~4 bar (DN15-DN25) 1~5 bar (DN32-DN100)
WORKING TEMPERATURE :
20 Bar 0° C to 70° C water WRAS approved 0° C to 70° C
HYDROSTATIC TEST PRESSURE :
Shell- 30 bar
Seat- 22 bar
ON REQUEST :
NPT Threads (subject to minimum order quantities)

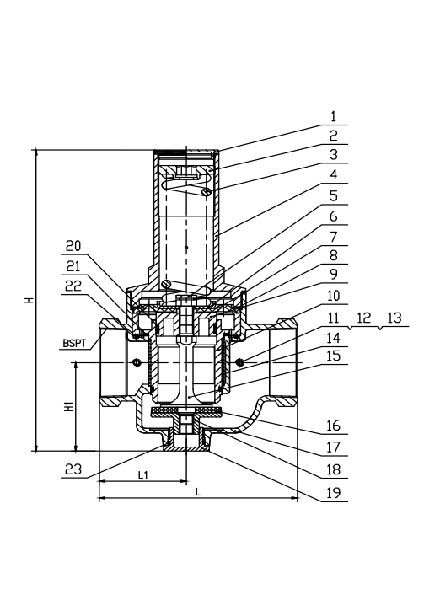

Specification
| Parts | Material |
|---|---|
|
Tap Lid |
Brass CW617N |
|
Adjusting Screw |
Brass CW617N |
|
Spring |
Steel |
|
Bonnet |
Bronze CC491K |
|
Core |
Brass CW617N |
|
Core Seat |
Brass CW617N |
|
Connection Piece |
Brass CW617N |
|
Mesh |
SS304 |
|
Male Plug |
Bronze CC491K |
|
Gasket |
NBR |
|
Body |
Bronze CC491K |
|
Gasket |
NBR |
|
Disc |
Brass CW617N |
|
Bottom Lid |
Brass CW617N |
|
O ring |
NBR |
