Description
Bronze ball valve crafted from high-quality copper-tin alloy, offering excellent corrosion resistance and long service life.
Two-piece body design enhances durability and simplifies maintenance.
Lever operated for quick, reliable flow control.
Rated PN25 for pressures up to 25 bar, ideal for high-pressure applications, with threaded ends for secure, leak-tight connections.
WRAS Approved
Features
FEATURES / CHARACTERSTICS
Rating: PN25
Connections: BS EN 10226-2
Taper Threaded (EX BS21)
Working Medium: Water, Oil and Steam
Two Piece Body, Full Bore Chrome Plated Ball
Blow Out Proof Stem , PTFE Seats and Stem
Seals
WORKING TEMPERATURE :
25 Bar -10° C to 110° C water
WRAS approved -10° C to 85° C
HYDROSTATIC TEST PRESSURE:
Shell- 37.5 bar
Seat- 27.5 bar
ON REQUEST :
NPT Threads, (subject to minimum order quantities)

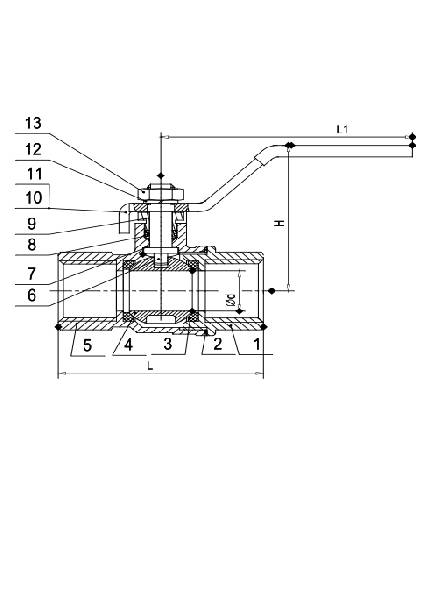

Specification
| Parts | Material |
|---|---|
|
Seat Retainer |
Bronze CC491K |
|
Gasket |
PTFE
|
|
Seat |
PTFE |
|
Ball |
Brass CW614N |
|
Body |
Bronze CC491K |
|
Stem |
Brass CW614N |
|
Stem Gasket |
PTFE |
|
Packing |
PTFE
|
|
Gland Nut |
Brass CW614N |
|
Lever |
Mild Steel |
|
Lever Cover |
PVC |
|
Gasket |
Steel |
|
Lever Nut |
Brass CW614N |
