Description
Bronze ball valve made from high-quality copper-tin alloy, delivering excellent corrosion resistance and durability in various applications.
Two-piece body design enhances strength and simplifies maintenance.
Lever operated for fast and reliable flow control.
Rated PN40 for pressures up to 40 bar, ideal for high-pressure applications, with threaded ends for secure, leak-tight connections.
WRAS Approved
Features
FEATURES / CHARACTERSTICS
Design: MSS-SP-110
Rating: PN40
Connections: BSPP-ISO228
Working Medium: Water, Oil and Steam
Two Piece Body, Full Bore, PTFE Seats and Stem
Seals
WORKING TEMPERATURE :
40 Bar -10°~+140°C
HYDROSTATIC TEST PRESSURE:
Shell- 60 bar
Seat- 44 bar
ON REQUEST :
NPT Threads, (subject to minimum order quantities)

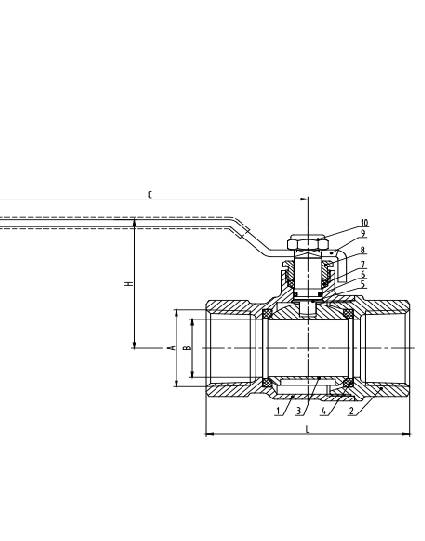

Specification
| Parts | Material |
|---|---|
|
Valve Body |
Bronze C83600
|
|
Bonnet |
Bronze C83600
|
|
Ball |
CW617N-½”~1”
SS304-1¼”~2” |
|
Seat |
PTFE |
|
Stem |
CW617N
|
|
O-Ring |
NBR (HA70) |
|
Packing |
PTFE
|
|
Packing Nut |
Brass HPb59-2RA |
|
Handle |
Q235A |
|
Hex Nut |
SS304
|
