Description

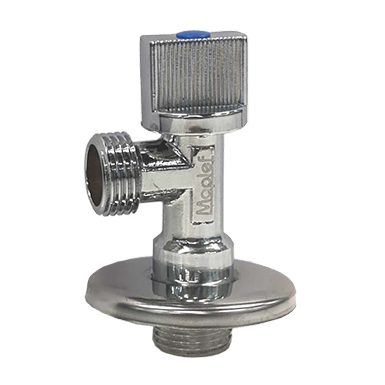

Angle valve constructed from high-quality brass with a durable chrome plating finish, providing enhanced corrosion resistance and an attractive appearance.
Designed for precise flow control in plumbing and heating applications.
Rated PN10 for pressures up to 10 bar, suitable for low-pressure systems.
Compact angle design allows for easy installation in tight spaces.
Threaded ends ensure secure and leak-tight connections.
Features
FEATURES / CHARACTERSTICS
Rating: PN10
Connections: G½” X G½”
or G½” X G⅜”
Working Medium: Water
Chrome Plated Brass Angle Type Body, with
Wall Flange, Quarter Turn Handle,
Both side Male Threads, Hot & Cold Indicator
WORKING TEMPERATURE :
10 Bar -10° C to 100° C water
HYDROSTATIC TEST PRESSURE:
Shell- 15 bar
Shell- 11 bar
ON REQUEST :
NPT Threads (subject to minimum order quantities)
Specification
| Parts | Material |
|---|---|
|
Screw |
Steel
|
|
Handle |
ABS
|
|
Stem |
Brass |
|
O-Ring |
NBR
|
|
Fixing Trifork |
ABS |
|
Washer |
NBR |
|
Body |
Brass
|
