Description
“DZR ball valve with a two-piece body construction for easy maintenance and durability.Lever operated with an extended stem for convenient handling and safe operation in insulated applications.Rated PN25 for pressures up to 25 bar, ideal for high-pressure applications, featuring threaded ends for secure and leak-tight connections.”
Features
FEATURES / CHARACTERSTICS
Rating: PN25
Connections: BS EN 10226-2
Taper Threaded (EX BS21)
Working Medium: Water, Oil and Steam
Two Piece Body, Full Bore, PTFE Seats and Stem
Seals
WORKING TEMPERATURE :
25 Bar 0° C to +95° C water
HYDROSTATIC TEST PRESSURE:
Shell- 37.5 bar
Seat- 27.5 bar
ON REQUEST :
NPT Threads, (subject to minimum order quantities)

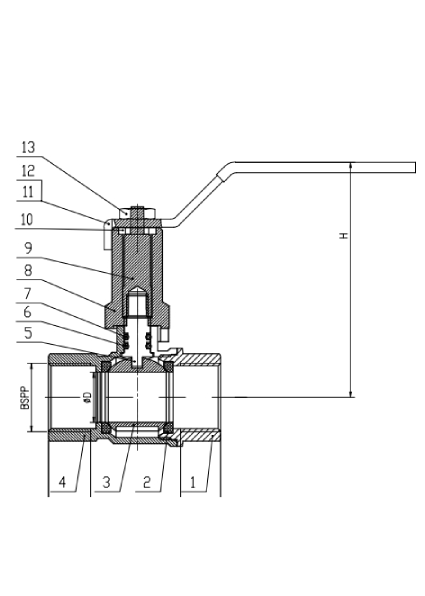

Specification
| Parts | Material |
|---|---|
|
Seat Retainer |
DZR CW602N |
|
Seat |
PTFE
|
|
Ball |
DZR CW602N
|
|
Body |
DZR CW602N |
|
Stem |
DZR CW602N |
|
O-Ring |
EPDM |
|
DZR CW602N |
EPDM |
|
Extension Housing |
Brass CW614N
|
|
Extension Stem |
Brass CW614N |
|
Gasket |
Brass CW614N |
|
Lever Cover |
PVC |
|
Lever |
Mild Steel |
|
Lever Nut |
Stainless Steel 304 |
