Description
Silent check valve in a globe-style pattern, constructed from high-strength ductile iron for enhanced durability and resistance to pressure stress. Designed for quiet, non-slam operation using a spring-assisted disc mechanism, preventing flow reversal and water hammer. Rated PN16 for pressures up to 16 bar, ideal for medium-pressure fluid systems. Flanged ends ensure standardized, secure connections for ease of installation and reliable sealing in pipeline networks.
Features
FEATURES / CHARACTERSTICS
Rating: PN16
Connections: Flanged to BS EN1092-2, PN16 (EX BS4504)
Working Medium Water, Oil and Steam
Ductile Iron Body
Stainless Steel Disc and Seat
WORKING TEMPERATURE :
16 Bar -10° C to 110° C water
HYDROSTATIC TEST PRESSURE:
Shell- 24 bar
Seat- 17.6 bar
ON REQUEST :
ANSI Standards (subject to minimum order quantities).
Specification

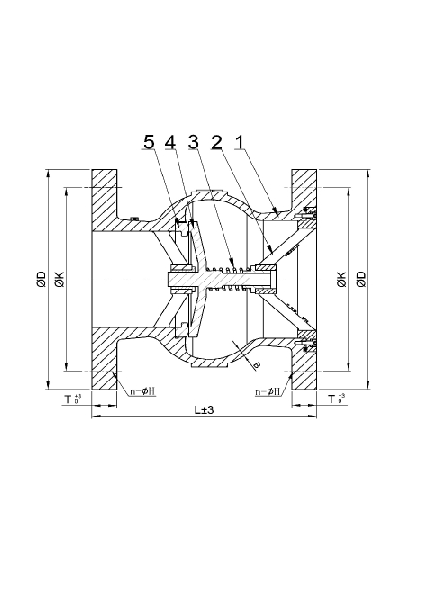

| Parts | Material |
|---|---|
|
Body |
Ductile Iron
|
|
Bracket |
Ductile Iron
|
|
Spring |
Stainless Steel
|
|
Disc |
Stainless Steel
|
|
Seat |
Stainless Steel |
