Description
Flexible hose assembly featuring SS304 stainless steel bellows for superior flexibility and vibration damping in piping systems. Reinforced with SS304 stainless steel braid to ensure enhanced pressure resistance and durability under dynamic conditions. Fitted with carbon steel flanged ends and integrated control rods for precise alignment and secure installation. Rated PN16 for pressures up to 16 bar, designed for medium-pressure applications demanding reliable flexibility, strength, and control.
Features
FEATURES / CHARACTERSTICS
Rating: PN16
Connections: Flanged to BS EN1092-2,
PN16 (EX BS4504)
Working Medium: Water, Oil and Steam
Stainless Steel Braided, Stainless Steel Bellow, Carbon Steel Flanges with Control Rods
WORKING TEMPERATURE :
16 Bar -10° C to 100° C water
HYDROSTATIC TEST PRESSURE :
Shell- 24 bar
ON REQUEST :
Other PN Ratings ,Other Body Material (NBR, Viton, etc.)
Hot Dip Galvanized(Tie Rods) (subject to minimum order quantities)

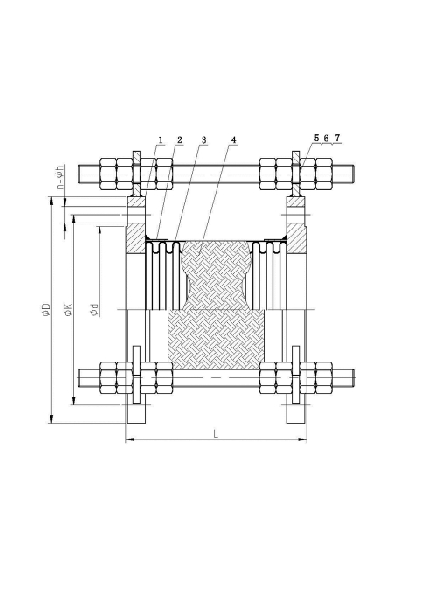

Specification
| Parts | Material |
|---|---|
|
Flange |
Carbon Steel |
|
Wrapped Circle |
Carbon Steel |
|
Bellow |
SS304 |
|
Braid |
SS304 |
|
Lug Ring |
Carbon Stee |
|
Tie Rods |
Carbon Steel/(HDG) |
|
Nuts |
Carbon Steel/(HDG) |
