Description
Durable underground indicator post designed for precise location marking of buried valves, hydrants, or pipeline assets. Constructed from corrosion-resistant materials to withstand soil conditions and provide long-term durability. Features a visible, color-coded top marker for quick identification and easy access during maintenance or emergency operations. Engineered for secure installation flush with ground level to prevent damage from surface traffic and environmental exposure.
Features
FEATURES / CHARACTERSTICS
Fusion bonded coating comply with AWWA C550

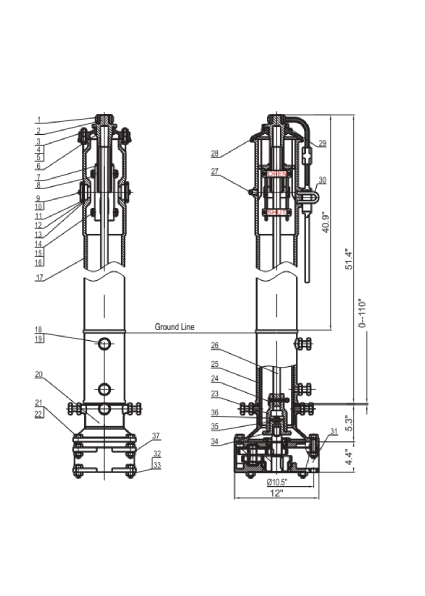

Specification
| QTY | Parts | Material |
|---|---|---|
|
1 |
Locking Wrench |
ASTM A536 |
|
1 |
Operating Nut |
CF8/ASTM B62 |
|
2 |
Bolt |
ASTM A105 |
|
2 |
Nut |
ASTM A105 |
|
2 |
Flat Washer |
ASTM A105
|
|
1 |
Shap Ring |
AISI 606 |
|
1 |
Target |
ASTM B108 |
|
4 |
Diaphragm Washer |
Ductile Iron |
|
4 |
Bolt |
ASTM A105 |
|
4 |
Flat Washer |
ASTM A105 |
|
2 |
Window Gland |
ASTM A307B |
|
2 |
Window Glass |
LEXAN-UN STABILIZE |
|
4 |
Gasket |
EPDM |
|
4 |
Bolt |
ASTM A105 |
|
4 |
Spring Washer |
ASTM A105 |
|
1 |
Nut |
ASTM A105 |
|
6 |
Body |
ASTM A536 |
|
6 |
Strainer |
ASTM A105 |
|
1 |
Tube |
ASTM A105 |
|
4 |
Base Flange |
ASTM A126B
|
|
8 |
Bolt |
ASTM A105 |
|
1 |
Nut |
ASTM A105 |
|
1 |
Crane Coupling |
ASTM A536 |
|
1 |
Cotter Pin |
AISI 304 |
|
1 |
Stand Pipe |
ASTM A536 |
|
1 |
Stem 1″ Square |
AISI 1045 |
|
1 |
Plug |
AISI 304 |
|
1 |
Top Cover |
ASTM A126B |
|
1 |
Screw |
AISI 304 |
|
1 |
Lock Nose |
ASTM A307B |
|
1 |
Reducer |
PARTS |
|
4 |
Bolt |
ASTM A105 |
|
4 |
Nut |
ASTM A105 |
|
1 |
Wrench Nut |
ASTM A536 |
|
1 |
Washer |
AISI 304
|
|
1 |
Hex. Socket Cap
Screw |
AISI 304
|
|
4 |
Spring Washer |
AISI 304
|
