Description
Durable underground indicator post designed for precise location marking of buried valves, hydrants, or pipeline assets.
Constructed from corrosion-resistant materials to withstand soil conditions and provide long-term durability.
Features a visible, color-coded top marker for quick identification and easy access during maintenance or emergency operations.
Engineered for secure installation flush with ground level to prevent damage from surface traffic and environmental exposure.
Features
FEATURES / CHARACTERSTICS
Fusion bonded coating comply with AWWA C550

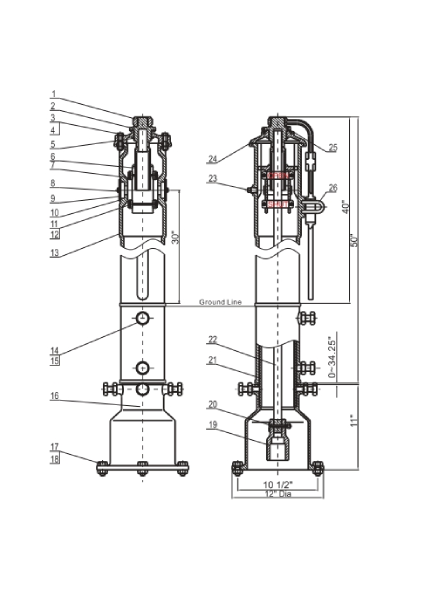

Specification
| QTY | Parts | Material |
|---|---|---|
|
1 |
Locking Wrench |
ASTM A126B |
|
1 |
Operating Nut |
AISI 304/ ASTM B62 |
|
2 |
Hex Nut Screw |
ASTM A105 |
|
2 |
Hex Nut |
ASTM A105 |
|
1 |
Snap Ring |
AISI 066 |
|
1 |
Taget Carrier Nut |
AISI 304/ ASTM B62 |
|
4 |
Taget |
ASTM B108 |
|
4 |
Hex Cap Screw |
ASTM A105 |
|
2 |
Window Glass |
LEXAN-UM |
|
2 |
Window Glass Gasket |
PTFE |
|
4 |
Hex Cap Screw |
ASTM A105 |
|
4 |
Hex Nut |
ASTM A105 |
|
1 |
Body |
ASTM A536 |
|
6 |
Hex Cap Screw |
ASTM A105
|
|
6 |
Hex Nut |
ASTM A105 |
|
1 |
Base Flange |
ASTM A126B |
|
4 |
Hex Cap Screw
|
ASTM A105
|
|
4 |
Hex Nut
|
ASTM A105
|
|
1 |
Crane Coupling |
ASTM A536 |
|
1 |
Cotter Pin |
AISI 304 |
|
1 |
Stand Pipe |
ASTM A53 |
|
1 |
Stem |
AISI 1045 |
|
1 |
Plug
|
AISI 304
|
|
1 |
Cover |
ASTM A126B |
|
1 |
Cross Recessed Countersunk Head Screw
|
AISI 304
|
|
1 |
Locking Nose |
ASTM 307 B |
