Description

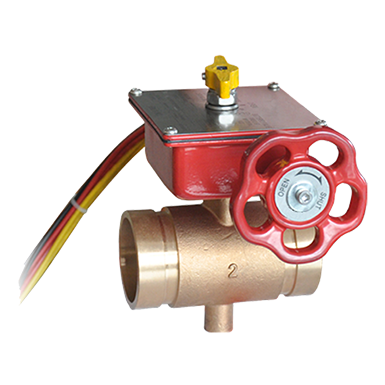

“Robust bronze butterfly valve with resilient elastomer seat, designed for tight shut-off and reliable sealing in fire protection systems.Grooved ends facilitate quick, secure connections, allowing for efficient installation and maintenance in grooved piping networks.Built to meet fire safety standards, suitable for medium-pressure firefighting applications.Corrosion-resistant bronze body ensures durability and dependable performance under demanding conditions.”
Features
FEATURES / CHARACTERSTICS
Rating : 175 PSI
Connections : AWWA C606
Applications : Fire protection, potable water, etc.
Fusion bonded coating comply with AWWA
C550
WORKING TEMPERATURE :
32°F to 180°F (0°C to 82°C)
MAXIMUM OPERATING PRESSURE :
175 PSI (12.06 bar)
ON REQUEST :
Other Pressure Ratings (subject to minimum order quantities)
Specification
| Parts | Material | SPECIFICATION |
|---|---|---|
|
Body |
Bronze |
ASTM B62 C83600
|
|
Disc |
Steel+EPDM |
ASTM 1045+EPDM |
|
Upper Shaft |
Stainless Steel |
SS630 |
|
Lower Shaft |
Stainless Steel |
SS630 |
|
O-Ring |
EPDM |
|
|
Gasket |
Stainless Steel |
AISI 304 |
