Description
Wall-mounted indicator post designed for clear and durable identification of valves, hydrants, or other critical pipeline components. Constructed from corrosion-resistant materials to ensure longevity and withstand outdoor environmental conditions. Features a prominently visible marker plate for easy identification and quick access during inspections and maintenance. Simple to install on walls or vertical surfaces, providing secure and space-efficient location marking for pipeline assets.
Features
FEATURES / CHARACTERSTICS
Fusion bonded coating comply with AWWA C550

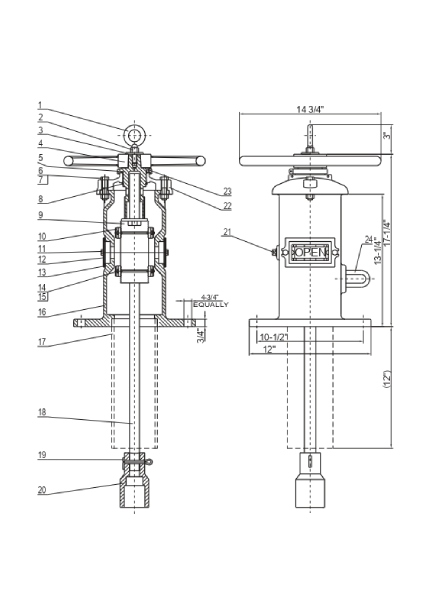

Specification
| QTY | PARTS | MATERIAL |
|---|---|---|
|
1 |
Locking Wrench |
ASTM A126B |
|
1 |
Operating Nut |
AISI 304/ASTM B62 |
|
2 |
Hex Nut Screw |
ASTM A105 |
|
2 |
Hex Nut |
ASTM A105 |
|
1 |
Snap Ring |
AISI 066 |
|
1 |
Taget Carrier Nut |
AISI 304/ ASTM B62 |
|
4 |
Taget |
ASTM B108 |
|
4 |
Hex Cap Screw |
ASTM A105 |
|
2 |
Window Glass |
LEXAN-UM |
|
2 |
Window Glass Gasket |
PTFE |
|
4 |
Hex Cap Screw |
ASTM A105
|
|
4 |
ASTM A105
|
ASTM A105 |
|
1 |
Body |
ASTM A536 |
|
6 |
Hex Cap Screw |
ASTM A105 |
|
6 |
Hex Nut |
ASTM A105 |
|
1 |
Base Flange |
ASTM A126B |
|
4 |
Hex Cap Screw |
ASTM A105
|
|
4 |
Hex Nut |
ASTM A105
|
|
1 |
Crane Coupling |
ASTM A536
|
|
1 |
Stand Pipe |
ASTM A53 |
|
1 |
Stem |
AISI 1045 |
|
1 |
Plug |
AISI 304 |
|
1 |
Cover |
ASTM A126B
|
|
1 |
Cross Recessed Countersunk Head Screw |
AISI 304 |
|
1 |
Locking Nose |
ASTM 307 B |
