Description
Bronze swing check valve manufactured from high-quality copper-tin alloy, offering excellent corrosion resistance and long-term durability.
Horizontal swing design ensures smooth, low-resistance flow with reliable backflow prevention.
Rated PN20 for pressures up to 20 bar, suitable for medium to high-pressure systems.
Threaded ends provide secure, leak-tight connections for easy installation in a variety of pipeline configurations.
WRAS Approved
Features
FEATURES / CHARACTERSTICS
Design: BS5154
Rating: PN20
Connection: BS EN 10226-2, Taper Threaded(EX BS21)
Working Medium: Water, Oil and Steam.
Horizontal Swing Pattern, Threaded Cover
Resilent seat, Suitable for mounting in Horizontal and
Vertical pipe (with vertical flow upwards)
WORKING TEMPERATURE :
20 Bar -10° C to 110° C water
WRAS approved -10° C to 85° C
HYDROSTATIC TEST PRESSURE:
Shell- 30 bar
Seat- 22 bar
ON REQUEST :
NPT Threads,Male/Female Ends(subject to minimum order quantities)

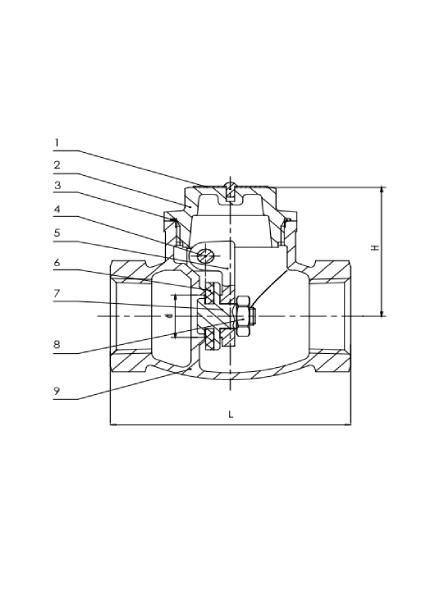

Specification
| Parts | Material |
|---|---|
|
I.D Plate |
Aluminum |
|
Cap |
Bronze CC491K
|
|
Packing |
PTFE
|
|
Hinge Pin |
SS304
|
|
Hinge |
Bronze CC491K |
|
Disc |
NBR/Bronze |
|
Disc Holder |
Bronze CC491K |
|
Hing Nut |
SS304
|
|
Body |
Bronze CC491K |
