Description
Robust basket strainer made from ductile iron, ensuring high mechanical strength and corrosion resistance in demanding flow systems. Designed to trap and remove debris from pipelines, protecting pumps, valves, and other downstream equipment. Rated PN16 for pressures up to 16 bar, suitable for medium-pressure liquid applications. Flanged ends ensure secure, standardized connections for easy installation and maintenance
Features
FEATURES / CHARACTERSTICS
Rating: PN16
Connections:Flanged BS EN1092-2, PN16
(EX BS 4504)
Working Medium: Water
Stainless Steel Screen
Mesh Details in Seperate Section
WORKING TEMPERATURE :
16 Bar -10° C to 110° C water
HYDROSTATIC TEST PRESSURE:
Shell- 24 bar
ON REQUEST :
ANSI standards , Other Flanges, Higher Sizes (subject to minimum order quantities
Specification

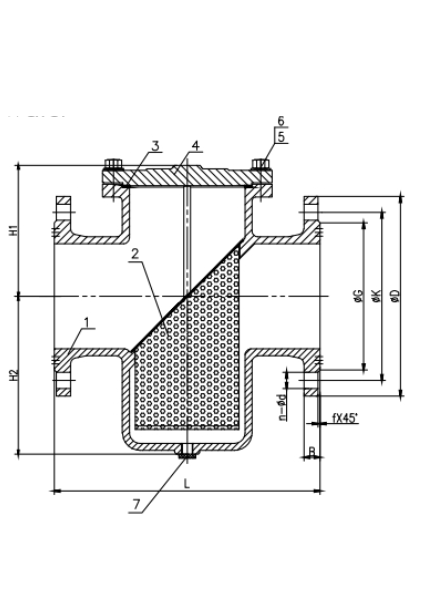

| Parts | Material |
|---|---|
|
Body |
Ductile Iron |
|
Screen |
Stainless Steel
|
|
Cover Gasket |
EPDM |
|
Cover |
Ductile Iron |
|
Bolt |
Stainless Steel |
|
Bolt Nut |
Stainless Steel |
|
Plug |
Galvanlzed Steel
|
