Description

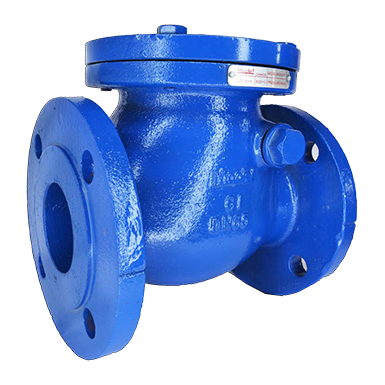

Ductile iron horizontal swing check valve manufactured from high-strength ductile iron, offering excellent durability and impact resistance.
Horizontal swing design provides smooth flow with effective backflow prevention and minimal pressure drop.
Rated PN16 for pressures up to 16 bar,
Flanged ends ensure secure, standardized connections for reliable installation and maintenance.
Features
FEATURES / CHARACTERSTICS
Design : BS5153
Rating: PN16
Connections: Flanged to BS EN1092-2, PN16 (EX BS4504)
Working Medium Water, Oil, Steam, Sewage
Face to face dimension of DN50-400 conforms to
series10 of BS EN558-1.
Bronze Trim, Horizontal Swing Pattern, Bolted Cover,
Suitable for mounting in horizontal
and vertical pipe (with vertical flow upwards)
WORKING TEMPERATURE :
16 Bar -10° C to 100° C water
HYDROSTATIC TEST PRESSURE:
Shell- 24 bar
Seat- 17.6 bar
ON REQUEST :
Available in PN25, ANSI Standards, Lever & Weight
and Air Cushion Check Valves. (subject to minimum order quantities).
Specification

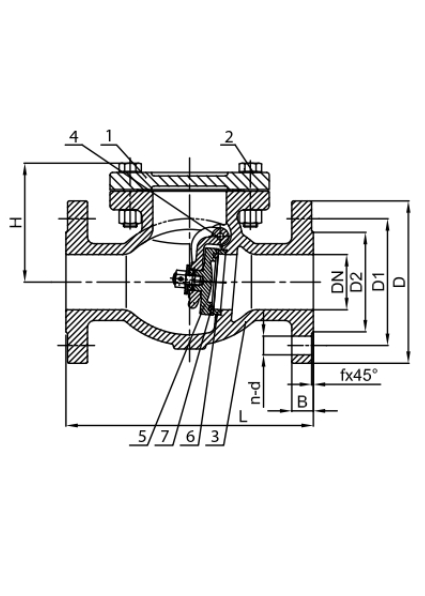

| Parts | Material |
|---|---|
|
Bonnet |
Ductile Iron
|
|
Bolt & Nut |
Steel |
|
Body |
Ductile Iron |
|
Hinge Pin |
Stainless Steel
|
|
Disc |
Ductile Iron |
|
Seat Ring |
Bronze |
|
Disc Ring |
Bronze |
