Description

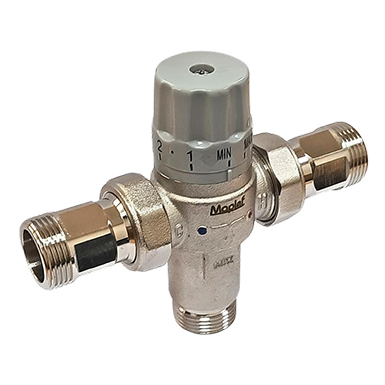

Thermostatic mixing valve constructed from dezincification-resistant (DZR) brass alloy, ensuring superior corrosion resistance and durability in potable water systems.
Precisely regulates mixed water temperature to prevent scalding and improve safety in domestic and commercial applications.
Rated for working pressures up to 174 PSI (approx. 12 bar), suitable for high-demand hot water systems.
Threaded ends provide secure, leak-tight connections and straightforward installation.
Features
FEATURES / CHARACTERSTICS
Rating: 174psi (12 bar)
Connections: Threaded
Working Medium: Water
Minimum Flow Rate: 1 USGPM
Temperature Setting Range: 32º ~ 60ºC(±2°C)
WORKING TEMPERATURE :
174 psi (12 bar) 32º ~ 60ºC(±2°C) water
HYDROSTATIC TEST PRESSURE:
Shell- 18 bar
ON REQUEST :
NPT Threads (subject to minimum order quantities)
Specification
| Parts | Material |
|---|---|
|
Body & Bonnet |
DZR Brass (CW602N)
nickel plated
|
|
Piston Assembly |
Thermoplastic
|
|
Element |
Vernet |
|
Spring |
Stainless Steel 304
|
|
O-Ring |
EPDM |
|
Control Knob |
ABS
|
