Description

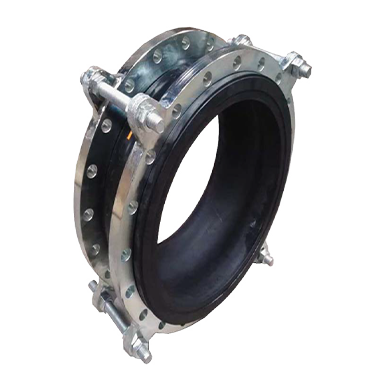

Flexible connector featuring a single bellow design made from durable EPDM rubber, offering excellent resistance to heat, ozone, and aging. Includes control rods to limit axial movement and provide additional stability under pressure fluctuations. Designed to absorb vibrations, accommodate thermal expansion, and reduce noise in piping systems. Rated PN16 for pressures up to 16 bar, suitable for low to medium-pressure applications. Equipped with flanged ends for secure, standardized connections, ensuring easy installation and maintenance.
Features
FEATURES / CHARACTERSTICS
Rating: PN16
Connections: Flanged to BS EN1092-2,
PN16 (EX BS4504)
Working Medium: Water, Oil and Steam
Single Sphere EPDM, Provide high level of
installation Flexibility,Control Rods
WORKING TEMPERATURE :
16 Bar -10° C to 100° C water
HYDROSTATIC TEST PRESSURE :
Shell- 24 bar
ON REQUEST :
Other PN Ratings ,Other Body Material (NBR, Viton, etc.)
(subject to minimum order quantities)
Specification
| Parts | Material |
|---|---|
|
Flange |
Carbon Steel Galvanized |
|
Rubber Ball |
EPDM |
|
Tie Rods |
Carbon Steel |
