Description

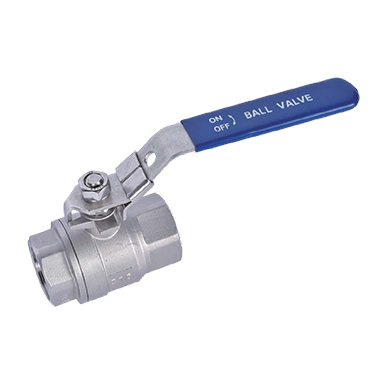

Stainless Steel Ball Valve, 2pcs Body, Lever Operated,1000WOG, Threaded Ends”Stainless steel ball valve constructed from high-grade stainless steel CF8M, offering excellent corrosion resistance and durability in demanding environments.Two-piece body design for easy maintenance and enhanced strength.Lever operated for quick and reliable flow control.Rated 1000 WOG (Water, Oil, Gas) for high-pressure applications, featuring threaded ends for secure, leak-tight connections.”
Features
FEATURES / CHARACTERSTICS
Working Pressure: 1000 WOG
Design: ASME B16.34
Connections: ASME B1.20.1
Temp & Pressure: Thread Ends ASME B16.34
Working Medium: Water, Oil and Steam
Two Piece Body, Full Bore, PTFE Seats and Stem
Seals
WORKING TEMPERATURE :
-29°C~120°C water
HYDROSTATIC TEST PRESSURE:
Shell- 24 bar
Seat- 17.6 bar
ON REQUEST :
BS EN Threads, (subject to minimum order quantities)
Specification
| Parts | Material |
|---|---|
|
Body |
A351 CF8M |
|
Stem |
A182 F316
|
|
Ball |
SS316
|
|
Seat |
PTFE
|
|
Thrust Washer |
PTFE |
|
Packing |
PTFE |
|
Nut |
A2-70 |
|
Handle |
SS201+PVC
|
