Description

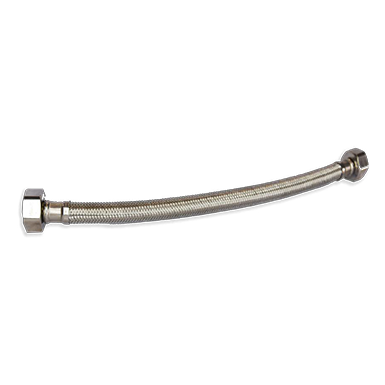

Flexible hose constructed from high-grade stainless steel, offering excellent corrosion resistance and mechanical strength for long-term durability.
Designed to accommodate vibration, thermal expansion, and misalignment in piping systems.
Rated PN16 for pressures up to 16 bar, suitable for low to medium-pressure applications.
Provides secure, leak-tight connections and ease of installation
Features
FEATURES / CHARACTERSTICS
Rating: PN16
Connection: Pipe Thread To BSPP
Working Medium: Water
Available size: 15mm (½”) x 15mm (½”)
Length: 300mm(Standard), 450mm & 600mm
Braided Flexible Hose, EPDM Tube
WORKING TEMPERATURE :
16 Bar -10° C to 100° C water
HYDROSTATIC TEST PRESSURE:
Shell- 24 bar
ON REQUEST :
Other Length & Sizes also available (subject to
minimum order quantities).
Specification
| Parts | Material |
|---|---|
|
Threaded Nut |
Brass / SS
|
|
Steel Wire |
SS 301
|
|
Inside Tube |
EPDM |
